How to connect multimode fiber optic connectors

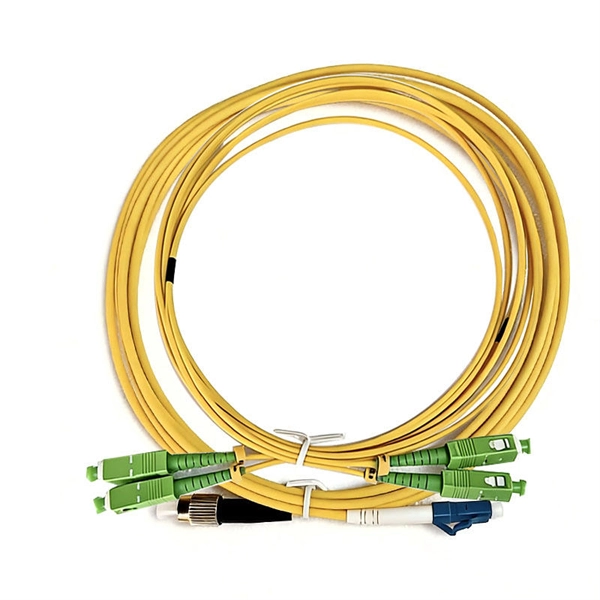

Multimode fiber optic connectors are connected using either mechanical connectors or splicing methods, with common connector types including ST, SC, LC, and MTP/MPO.Connector Types and TerminationMultimode fiber optic cables can be terminated with a variety of connectors depending on the application and equipment compatibility. Common types include ST, SC, LC, FC, and MTP/MPO connectors . Each connector has a ferrule, usually made of ceramic, that aligns the fiber cores for optimal light transmission . The fiber is typically glued into the ferrule and polished to ensure minimal insertion loss and reflection . LC connectors are popular for high-density applications due to their small form factor, while ST connectors use a bayonet-style twist lock for secure connections .Connection Methods1. Mechanical ConnectorsMechanical connectors create a semi-permanent joint by aligning the fiber ends within a connector housing. They often use index-matching gel or epoxy to reduce reflection losses . Mechanical connections are convenient for installations that may require frequent disconnection or reconfiguration. They are faster to install than fusion splices but typically have slightly higher insertion loss, around 0.5 dB .2. Fusion SplicingFusion splicing provides a permanent, low-loss connection by fusing the fiber ends together using heat . This method is ideal for long-term installations where minimal signal loss is critical. Fusion splices offer the lowest insertion and reflection losses, making them suitable for high-speed multimode networks in data centers and enterprise LANs .3. Mechanical SplicingMechanical splicing is a semi-permanent method where fiber ends are held together in an alignment device. It is simpler than fusion splicing and allows for temporary connections, but the optical performance is slightly lower due to higher insertion and reflection losses .Alignment ConsiderationsFor multimode fibers, alignment tolerances are less stringent than single-mode fibers due to the larger core diameter (50–62.5 µm) and higher numerical aperture . High coupling efficiency is achieved if the receiving fiber has a core diameter and numerical aperture equal to or larger than the transmitting fiber. Misalignment can reduce brightness but generally does not cause severe power loss .Practical TipsEnsure connector type compatibility with network equipment and transceivers .Use cleaning tools to remove dust or debris from fiber endfaces before connection.For high-density or high-speed applications, consider LC or MTP/MPO connectors for compact and scalable deployment .Choose fusion splicing for permanent, low-loss connections and mechanical connectors for flexible, reconfigurable setups . By selecting the appropriate connector type and connection method, multimode fiber networks can achieve reliable, high-speed data transmission with minimal signal loss and optimal performance .
