High-end Data Center Outdoor Power Distribution Box Design

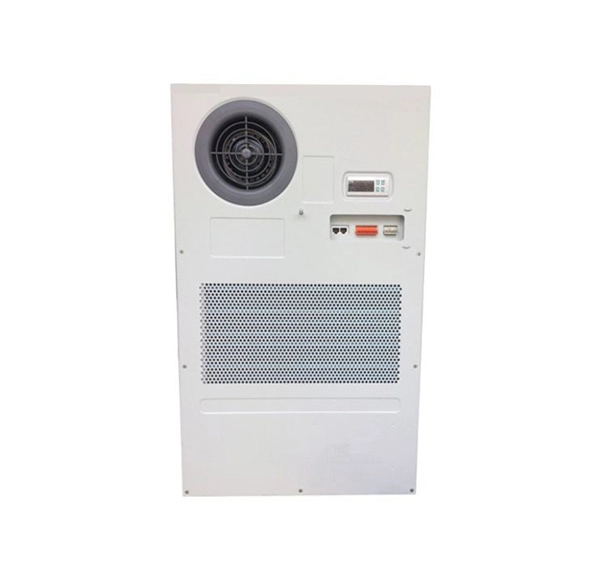

A high-end outdoor power distribution box for data centers should combine robust environmental protection, high-efficiency power conversion, modularity, and advanced monitoring to ensure reliable, scalable, and safe power delivery.Key Design ConsiderationsEnvironmental Protection: Outdoor enclosures must be rated for weather resistance (IP65 or higher) and corrosion protection, using materials like powder-coated steel or stainless steel. Thermal management is critical; incorporate forced-air cooling, heat exchangers, or liquid cooling to maintain optimal operating temperatures for high-power components . Power Architecture: Modern data centers increasingly use high-voltage DC or 48V intermediate bus architectures to reduce conversion losses and improve efficiency. Incorporating GaN-based converters or LLC DCX topologies can achieve efficiencies up to 98% while minimizing stages of conversion . The box should support both AC input from the utility and integration with medium-voltage switchgear if required. Modularity and Scalability: Design the box with modular compartments for breakers, PDUs, and monitoring units. This allows for easy upgrades, maintenance, and expansion as IT load increases. Include space for future integration of AI-driven high-power racks, which may demand hundreds of kW per rack . Safety and Protection: Include arc flash mitigation, surge protection, and fault isolation. Use high-quality breakers, fuses, and contactors to protect both the distribution box and downstream IT equipment. Compliance with international standards (IEC, UL, IEEE) is essential for safety and reliability . Monitoring and Control: Integrate intelligent PDUs and remote power panels (RPPs) with real-time monitoring of voltage, current, and temperature. Advanced models allow remote switching, load balancing, and predictive maintenance, which is critical for outdoor deployments where physical access may be limited . Integration with UPS and Generators: Ensure the distribution box can interface with upstream UPS systems and backup generators. Include static transfer switches (STS) for seamless bypass and redundancy, maintaining uninterrupted power to critical IT loads . Efficiency and Energy Management: Optimize conductor sizing, minimize conversion stages, and use high-efficiency components to reduce losses. Consider DC distribution for ICT loads to avoid repeated AC-DC conversions, improving overall energy efficiency .Recommended ComponentsMedium-voltage switchgear for incoming utility or generator connectionsHigh-efficiency AC/DC or DC/DC converters (GaN or LLC topologies)Intelligent PDUs and RPPs with monitoring and remote controlCircuit breakers, fuses, and surge arresters for protectionEnvironmental sensors for temperature, humidity, and airflowModular enclosure sections for future expansion By combining these elements, a high-end outdoor power distribution box can deliver reliable, efficient, and scalable power to modern data centers, supporting high-density AI and HPC workloads while ensuring safety and operational continuity.
