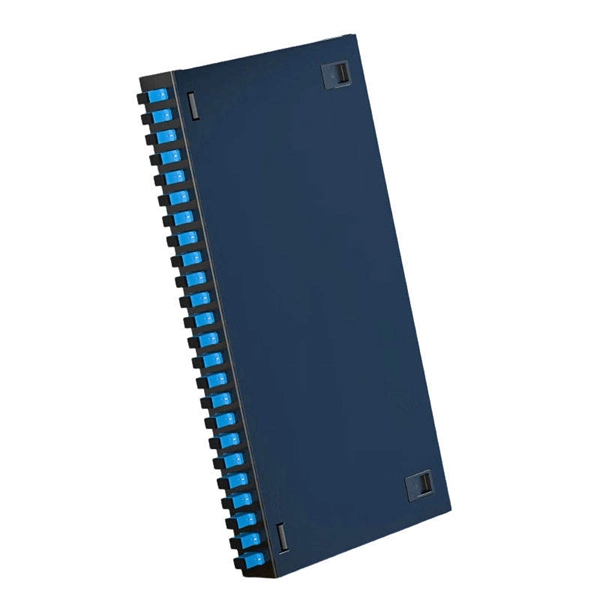

Fiber Optic Cable Box Installation

Installing a fiber optic cable box involves careful planning, proper mounting, precise splicing, organized routing, and thorough testing to ensure reliable FTTH or network performance.Planning and PreparationBefore installation, conduct a site survey to determine the optimal location for the fiber optic termination box, considering accessibility, environmental protection, and cable routing paths . Choose the appropriate box type: indoor compact boxes for telecom rooms or corridors, and outdoor weatherproof boxes with UV and moisture resistance for external installations . Ensure compliance with local safety regulations and FOA standards for fiber cabling .Mounting the BoxSelect a stable surface such as a wall or pole.Use appropriate anchors for the surface material to secure the box firmly.Position the box to allow natural fiber routing without stress or sharp bends, respecting the minimum bend radius of the fiber .For outdoor boxes, ensure weatherproof sealing to prevent moisture ingress .Fiber Routing and SplicingRoute incoming fiber cables into the box carefully, avoiding sharp turns or excessive tension .Use slack management techniques, such as loops or figure-8 patterns, to prevent kinking and allow future maintenance .Splice fibers using fusion or mechanical splicing methods, stacking splices neatly in the tray to avoid stress points .Label each fiber clearly for identification and future troubleshooting .Testing and VerificationUse OTDR, light source, and power meter to test signal strength, detect faults, and verify network integrity .Confirm that all fibers are properly terminated and adapters are correctly installed.Ensure that the box is closed securely and that cables are protected from mechanical damage or environmental exposure .Best PracticesAvoid pulling cables over sharp edges or applying excessive tension .Maintain smooth curves and avoid abrupt turns to prevent signal loss .For long-term reliability, regularly inspect and clean the box and fiber connections .Consider cable trays or ducts for organized routing in data centers or multi-unit buildings .By following these steps, a fiber optic cable box can be installed efficiently, ensuring high-speed, reliable, and maintainable network performance for FTTH or other fiber optic deployments .
